VMAX1
New product
VariMax are the largest variable eyepiece projection adapters in production.. anywhere. They are so large a standard eyepiece projection adapter fits inside it! You can now use your larger more expensive eyepieces, even Zooms.
This product is no longer in stock
Availability date:
VariMax™ Variable Eyepiece Projection Adapter w/ 1.25" Barrel
VariMax are the largest variable eyepiece projection adapters in production.. anywhere. They are so large a standard eyepiece projection adapter fits inside it! You can now use your larger more expensive eyepieces, even Zooms.
Recipient :
* Required fields
or Cancel
Sky & Telescope Magazine
HOT PRODUCT WINNER
VariMax™ Pro-Series
Variable Eyepiece Projection Adapter
Varimax fits any DSLR Camera (with appropriate T-Ring).
Eyepiece Projection Adapter Size Comparison
Standard - Variable - VariMax (1.25") - VariMax II (2")
VariMax is the largest projection adapter in production.. anywhere.
A 32mm Plossl eyepiece doesn't begin to fill the 1.25" VariMax.
VariMax fits directly to a "T" Mount or 1.25" Focuser. Fits 2" Focusers w/optional 2" Barrel.
If you have been looking for an Eyepiece Projection adapter you have probably noticed they all have a few things in common.. they only hold small eyepieces with an upper body diameter of 1.5" or less. This limits you to (at most) a 25 or 26mm plossl eyepiece. They also have no means of easily determining the projection length, this can be frustrating if you want repeatability or just like to record your equipment settings so you can refer back to them in the future. They also typically only fit 1.25" focusers and forget about finding one to fit your 2" Eyepieces. All of that is just fine for your average amateur astronomer taking a few pictures now and then.
PROjection astrophotography starts here..
But if you take your astrophotography seriously have a good look at our new VariMax Pro-Series projection adapters. VariMax are the largest variable eyepiece projection adapters in production.. anywhere. They are so large a standard eyepiece projection adapter fits inside it! You can now use your larger more expensive eyepieces, even Zooms. The laser engraved scale enables you to easily record the projection length for repeatability with confidence. The upper body has an extra wide machine knurled grip ring for a sure grip even in the worst dew conditions. Both barrel sizes are also equipped with standard "undercuts" to protect your expensive equipment from a loose eyepiece port retention screw (as can sometimes happen from temperature changes). We also kept the portion below the eyepiece low profile, so VariMax requires no more back focus than a standard projection adapter. VariMax is also versatile, in addition to eyepiece projection you can use this adapter in various other configurations. For example you can use it with no eyepiece installed for use as a Variable TeleExtender, or you can use it with a Barlow Lens installed for TeleNegative Projection. Also see our DSLR Pro-Kits, they include the VariMax as well as other popular imaging items in a custom storage case.

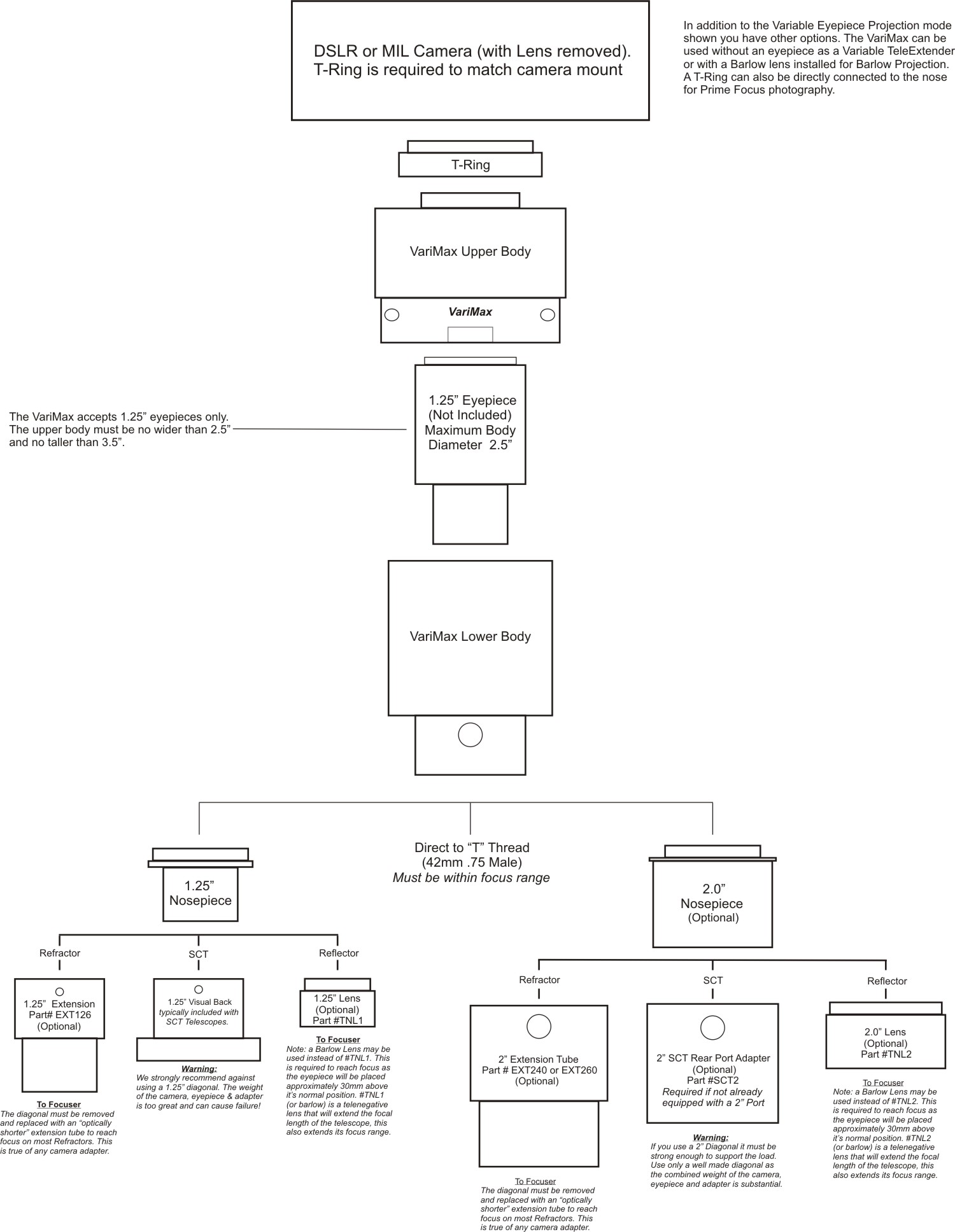

Please Note: Varimax requires a T-Ring to fit your camera. Other items may be required depending
on the type of telescope used. Please see the Setup Diagrams below for specifics.
VariMax Specifications
Approx Weight : 14.4 oz (.4 kg)
Extension Range : 1.26" (32mm)
Eyepiece Port Size : 1.25" (31.7mm)
Barrel Size : 1.25" standard (2" optional)
Max EP Height (Upper Body) : 3.5" (90mm)
Max EP Diameter (Upper Body) : 2.5" (63mm)
Direct Mounting Thread : 42mm (.75) "T" Mount
VariMax 1:
A – Must be 2.5” or less.
B – Must be 3.5” or less.
C – Must be 1.25”
