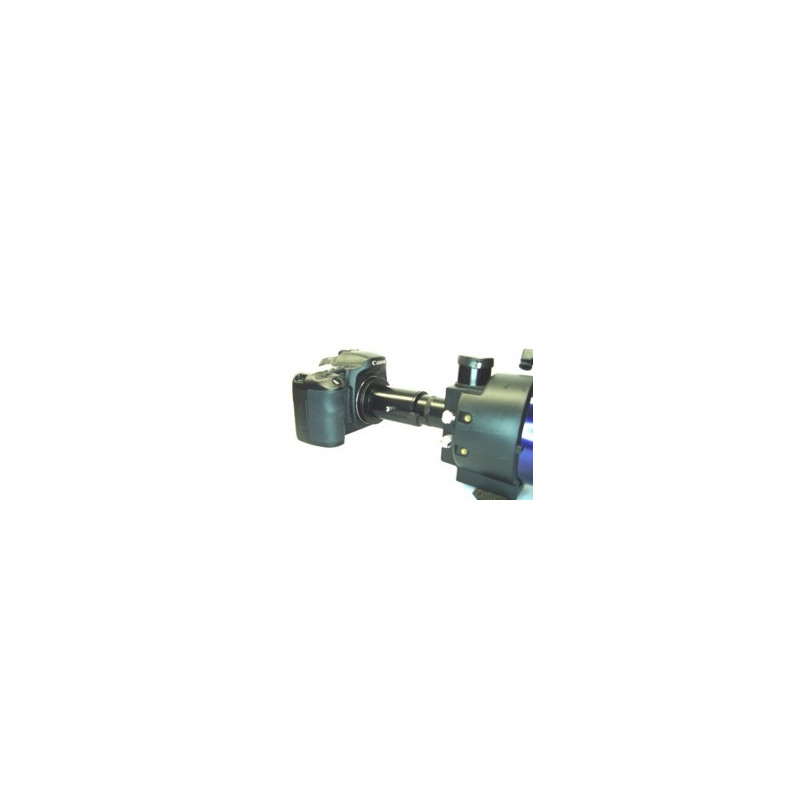

The included parts will allow you to couple your SLR or DSLR camera to the ETX rear photo port (or the top eyepiece port) for "prime focus" or "eyepiece projection" astrophotography or nature shots.
This product is no longer in stock
(Note: Diagram shows all 3 ETX kit versions)

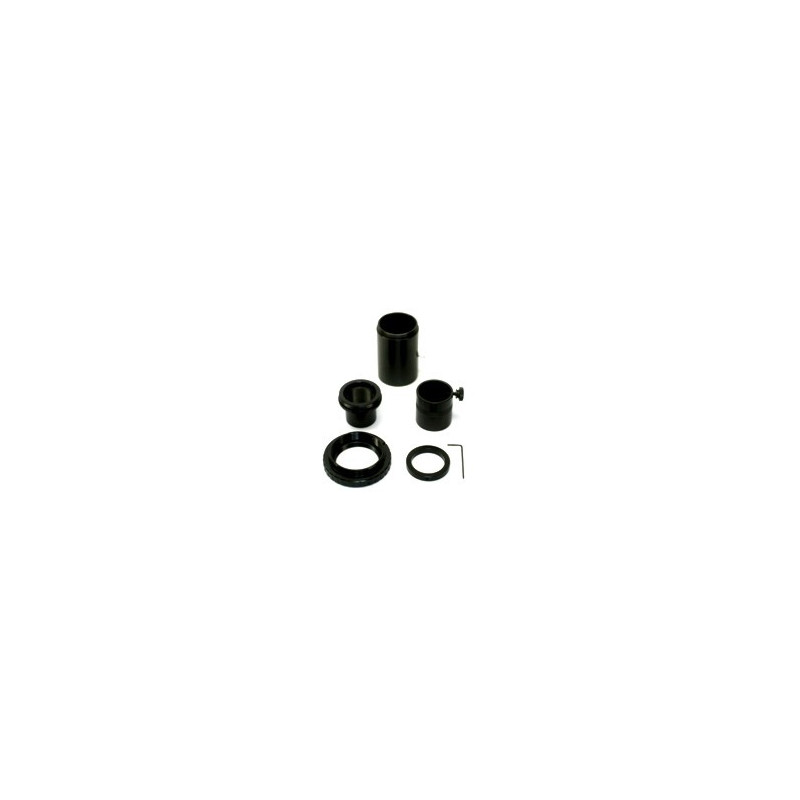

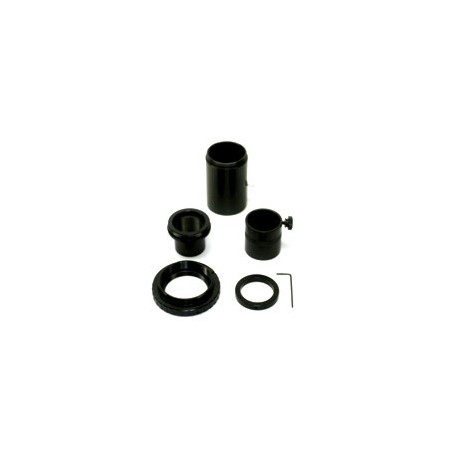

The included parts will allow you to couple your SLR or DSLR camera to the ETX rear photo port (or the top eyepiece port) for "prime focus" or "eyepiece projection" astrophotography or nature shots. Much more versatile than the Meade #64 Adapter. The money saving combo includes our 1.25" Eyepiece Projection Adapter (#BEPA) , the appropriate T-Ring for your brand of camera, an ETX 1.25" Rear Port Adapter (#ETXVB) and a Parfocalizing Ring (#PRING).
The parfocalizing ring lets you make an eyepiece in your top port "Parfocal" with your camera. This will allow you to center and focus using an eyepiece in the top port (which is much easier than focusing in the camera viewfinder) and then just flip the mirror down to take a perfectly focused image. Parts are "T" threaded for compatibility with many other adapters. Constructed of aluminum with an anodized black finish.
NOTE: The eyepiece upper barrel can be no larger than 1.5" in diameter. Fits most Plossl eyepieces up to 26mm FL.
Fits: Samsung NX Mount - NX20, NX210, NX1000, etc. This Astrophotography kit is suitable for: Prime Focus & Eyepiece Projection
This Visual Back threads onto the photo port of the ETX-90/105/125 or other scopes having a 34.6mm rear port thread and allows you to view or image straight through the scope using 1.25" accessories. The Visual Back has a standard 1.25" eyepiece port on the back end.
Size: 1.25" Parfocalizing rings are one of the most useful gadgets in astronomy. They can be used for several purposes.
