Olympus / Panasonic Micro 4/3 T-Minus 2" UltraWide Prime Focus Adapter

T2M43

New product

Fits Olympus PEN, OM-D & Panasonic/Lumix "G". T-Minus takes it's name from that fact that it is shorter than the "T" standard. T-Minus adapters are over an inch shorter than T-Ring solutions, for reflector owners this means you can likely reach true prime focus for the first time.

More details

$89.00

Add to wishlist

More info

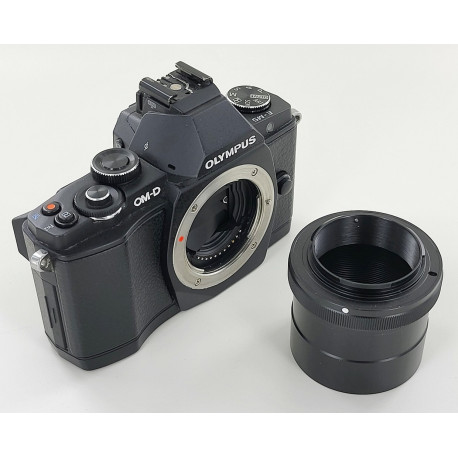

T-Minus 2" UltraWide Prime Focus Adapter for Micro 4/3 Olympus PEN, OM-D & Panasonic/Lumix "G"



---

As seen in Sky & Telescope Magazine.


T-Minus increases the clear aperture by over 10mm compared to a T-Ring.
LOW PROFILE design saves you over  25mm of precious Back Focus!
ULTRA WIDE design - There is zero shading of the CCD sensor.


The T-Minus adapter goes directly from Bayonet mount to 2" barrel.

This increases the clear aperture from 1.5" to 1.85" compared to a T-Ring.
There is zero shading of the CCD sensor. Pictured with optional dust filter.

T-Minus (Left) | T-Ring & T-Mount (Right)
T-Minus takes it's name from that fact that it is shorter than the "T" standard.
T-Minus is over an inch shorter than a T-Ring/T-Mount Combo! Great News for Reflector Owners!


T-Minus adapters provide distinct advantages over a T-Ring solution..

T-Minus adapters are a part of our larger "True-2" UltraWide Adapter line, as such they offer a full 10mm more clear aperture than a T-Ring setup.

T-Minus takes it's name from that fact that it is shorter than the "T" standard. T-Minus adapters are over an inch shorter than T-Ring solutions, for reflector owners this means you can likely reach true prime focus for the first time (without any telescope modifications or telenegative lenses).

T-Minus adapters are CNC machined from a single piece of aluminum making them lighter, stronger and with zero chance of separation due to T-Ring failure. In addition they are fully baffled to reduce reflections and threaded to accept standard 2" (48mm) eyepiece filters.

--

View Enlarged Setup Diagram

________________________________________________________________________________________________

Q: I have a Meade (or Celestron) SCT telescope and would like to have the benefits of this adapter but my scope only accepts 1.25" eyepieces. Is there any way I can use this adapter?
A: If your SCT is not already setup to accept 2" eyepieces and accessories you will need a 2" Rear Port Adapter, this item threads onto the large thread on the rear cell of your scope and converts it to a standard 2" eyepiece port. The T-Minus adapter will slide directly into this port.

Q: I have a Meade (or Celestron) SCT telescope. Will this adapter thread directly on to the rear cell of my scope?
A: T-Minus will not thread directly onto the rear of an SCT scope, It has a 2" barrel just like a 2" eyepiece and inserts into a 2" eyepiece port. If your SCT is not setup to accept 2" eyepieces you will need a 2" Rear Port Adapter. This is actually better than if it threaded on to the scope directly as it allows you to very quickly and easily install and remove the camera during a session. It also gives you absolute freedom in positioning the camera radially for the best framing of your shot.

Q: Will this adapter fit my spotting scope (or microscope)?
A: The T-Minus adapter is for astronomical type telescopes equipped with 2" eyepiece ports ONLY. It will not fit spotting scopes or microscopes. If you need help selecting the proper adapter just send us an email. Please include camera and scope models.

________________________________________________________________________________________________


Fits all Olympus PEN & OM-D series cameras
Including models E-P2, EP-3, EP-5, E-PL1, E-PL1, E-PL2, E-PL3, E-PL4, E-PL5, E-PL6, E-PL7
E-PM1, E-PM2, OM-D E-M1, E-M5, E-M5(Mk 2), E-M10, E-M10 (Mk 2)
and ALL Olympus Micro 4/3 Mount Cameras.

Also Fits all Panasonic/Lumix "G" series cameras
Including models DMC-G1, G2, G3, G4, G5, G6, G7, G8, G9, G10, GH1, GH2, GH3, GH4, GF1, GF2, GF3, GF4, GF5, GF6, GF7
GX1, GX2, GX3, GX4, GX5, GX5, GX7, GX8, GM1, GM2, GN3, GM4, GM5

and ALL Panasonic/Lumix Micro 4/3 Mount Cameras.
