MicroMount™ Microscope & Telescope Universal Adapter (UniCam & Uni-T Combo) View larger

MicroMount™ 1.5" Eyepiece Microscope & Telescope Universal Adapter (UniCam & Uni-T Combo)

MMT1

New product

The MicroMount is a combination of our UniCam and Uni-T adapters. It will easily adapt most "pocketable" sized Point & Shoot type cameras to Eyepieces having an outside diameter of up to 1.5".

More details

$99.00

Add to wishlist

More info

MicroMount™  Microscope & Telescope Universal Adapter (UniCam & Uni-T Combo)

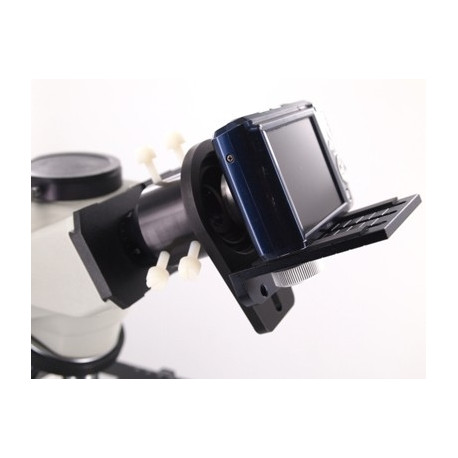

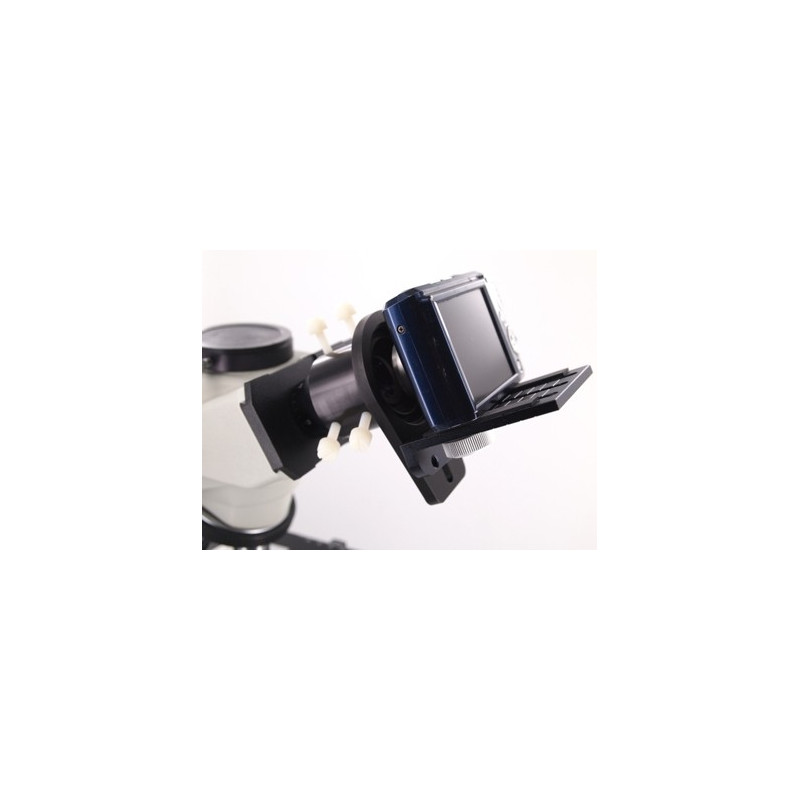

mm-on microscope-300H.jpg

The MicroMount™ is a combination of our UniCam and Uni-T adapters. It will easily adapt most "pocketable" sized Point & Shoot type cameras to Eyepieces having an outside diameter of up to 1.5" (see #MMT2 for Diameters up to 2"). Installation is quick and easy and subsequent setups with the same Eyepiece and Camera are even easier. Constructed of sturdy CNC Machined Aluminum with a durable black anodized finish for years of use. High precision aluminum parts for accurate optical alignment. Beware of similar looking mounts made of flimsy plastic that droops under the weight of a camera causing poor alignment and vibrations. The Nylon thumbscrews will not mar your expensive eyepieces. Use your cameras built-in timer mode for easy shake-free shots. Packaged with illustrated easy to follow instruction sheet. Includes a 1yr warranty against defects in material or workmanship.

Specifications
Max Eyepiece Diameter: #MMT1 1.5" (38mm)
Max Camera Depth: 68mm (Measured from tripod mounting hole to tip of lens at max lens extension)
Max Lens Height: 55mm (Measured from center of lens to bottom edge of camera)

TIP: If you always use this adapter on the same eyepiece it is self-centering after the first use. Simply tighten & loosen the same upper and lower screw (not touching the other 4) and the adapter will automatically recenter itself for quick easy re-installation. Use your cameras "self timer" mode to assure clear shake free shots..

Questions? Just send us an email
(please indicate camera model when contacting us)
